In 2023, approximately 414 million tons of plastics were produced worldwide, with 33 percent of this amount produced in China and 12 percent in Europe alone. For comparison: In 2002, the amount in Europe was almost identical at 56 million tons, but globally it was only 200 million tons – not even half.
»The European Commission sees the circular economy as a key building block of climate neutrality. It helps conserve natural resources and avoid the incineration of waste.«
Dr. Ralf Düssel Head of Sustainability at Evonik
Where do we put these vast quantities when they are no longer needed? Despite advances in recycling, only about 27 percent of the plastic produced in Europe is recycled, while the rest is either used for energy recovery – meaning burned – or landfilled.
Recycling plastics can be challenging. While mechanical recycling is often an energy-efficient and cost-effective solution, there are materials that cannot be recycled this way due to their properties, complexity, or contamination. This is where chemical recycling comes into play as a complementary technology. It allows even heavily contaminated or difficult-to-recycle plastics to be returned to the production cycle.
Chemical Recycling – A Key to the Circular Economy
Chemical recycling encompasses various processes to recover valuable raw materials from plastics. These include pyrolysis, depolymerization, and gasification. In these processes, plastic waste is broken down into liquids, smaller building blocks, or gases, which can then be processed into new plastics. A promising method is pyrolysis, where plastic waste is converted into a synthetic crude oil fraction, which can be used directly or further processed in existing production processes.
This method not only reduces waste but also contributes to CO2 reduction, as it replaces fossil raw materials. Additionally, plastic waste that would otherwise end up in incineration plants or landfills can now be recycled.
The company ARCUS is a pioneer in the recovery of raw materials through pyrolysis. It has developed a technology that makes it possible to close the plastic cycle and significantly reduce the carbon footprint of plastics. Valuable mixed plastic waste streams are not burned but converted into a naphtha-like pyrolysis oil through pyrolysis and used as a raw material in plastic production.
»Waste generates very inhomogeneous material streams.«
Daniel Odenthal COO at ARCUS Greencycling Technologies
The ARCUS Process
The uniqueness of the ARCUS process lies in its ability to process even complex and heavily contaminated waste. The process is also insensitive to foreign materials. Plastic waste can be converted into a high-quality raw material for plastic production. The ARCUS process operates entirely electrically and will generate the required electricity from the resulting pyrolysis gases in the future. The combination of pyrolysis and the use of Evonik additives to improve their handling and thus resource efficiency helps advance the circular economy while reducing CO2 emissions.

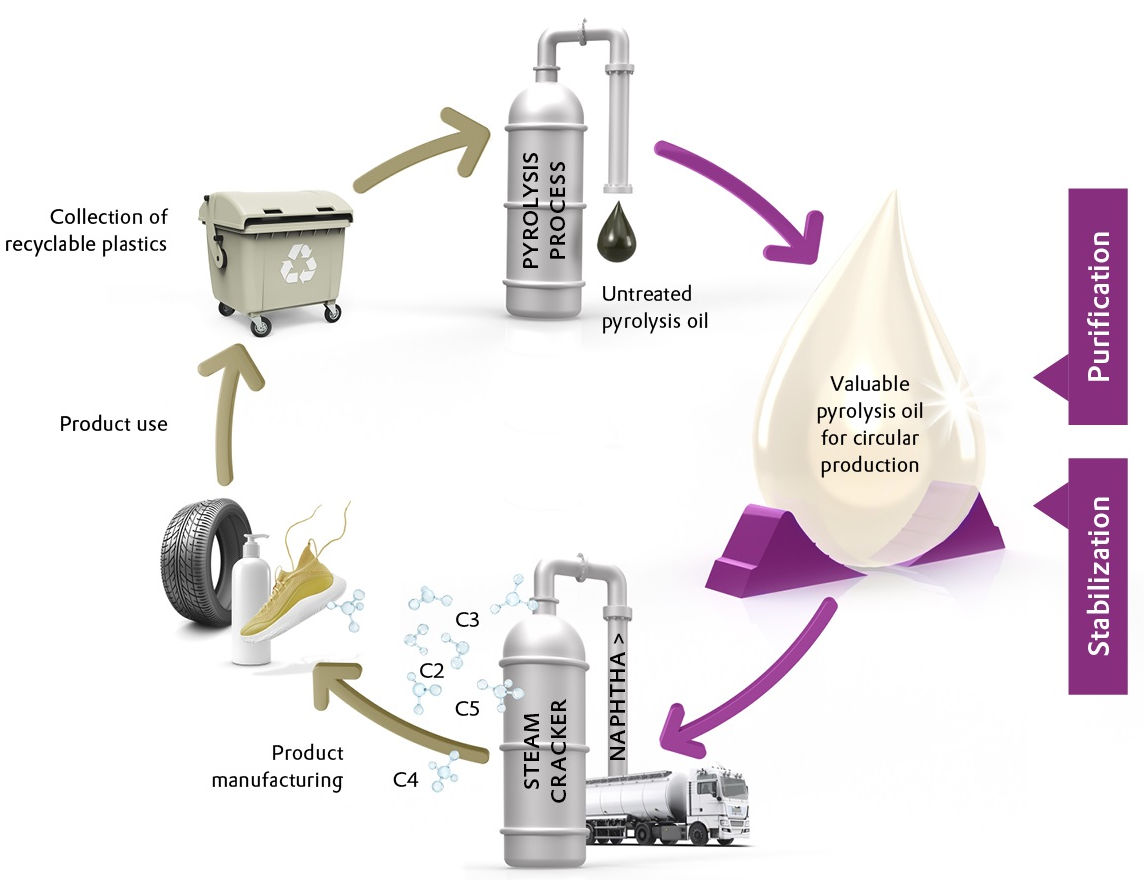

closed circuit
The ARCUS Process
»Our VISCOPLEX flow improvers modify the crystallization behavior of waxes in pyrolysis oil, thereby avoiding unpredictable challenges in handling these oils.«
Sachin Wagh Project Manager PyOil, Oil Additives at Evonik
With flow improvers from the VISCOPLEX brand, Evonik aims to support the handling of ARCUS pyrolysis oils. Pyrolysis oils from plastic waste often contain waxy contaminants. These increase the viscosity of the oil depending on temperature and affect its pour point, the temperature at which the oil flow stops. This complicates the processing of pyrolysis oil in the process, storage, transport, and further processing of the product.
Evonik's developed flow improvers reduce the viscosity and pour point of the pyrolysis oil, optimizing its processability. The pyrolysis oil remains flowable, resulting in savings in temperature regulation and reduced maintenance needs for piping systems. This makes pyrolysis oil a genuine alternative to fossil naphtha, traditionally used in established production processes.
»Thanks to our long-standing expertise, technical customer service, and the resulting recommendations from our range of pour point depressants, we can assist our customers in speeding up their product development.«
Sofia Sirak Senior Innovation and Technology Manger, Oil Additives at Evonik
Evonik Additives
This process is an example of how companies can collaborate to enable circular business models. With the combination of innovative processes, partnerships, and a clear focus on sustainability, Evonik aims to play a key role in the circular economy in the future.
Recycling rate still low
»Our basic philosophy is developing and operating a technology that is as robust as possible so it can successfully process highly variable, demanding, and even contaminated waste.«
Dr. Marco Tomasi Morgano CTO at ARCUS Greencycling Technologies
Plastic recycling – step by step
