3D printing now in series production

It’s clear that object 3D-0426 was a failure. The result was a fuzzy grayish-white structure with ragged edges. It’s hard to tell what it was originally meant to be. However, its neighbor, 3D-0308, is a splendid specimen. It’s a clean and smooth sphere that seems to be itching to be used on the billiard table. Bags bearing cryptic lettering and filled with small, delicate sculptures, blocks, and spheres take up an entire shelf of the Evonik lab in the Marl Chemical Park.

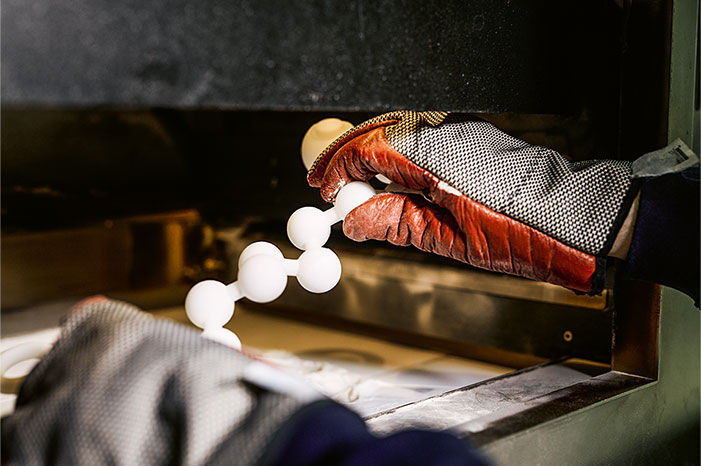

Next to it are the cabinet-size 3D printers that made all of these parts from powdered material in cartridges. The objects are the result of test runs in which the appropriate printing parameters are sounded out, new formulations are tried out, and the properties of a batch of material are checked. This is accomplished by repeatedly printing the same standardized objects, which are then subject to standardized stress tests. Without such laborious quality checks, no company would be willing to have its products made by means of additive manufacturing, which is the technical term for 3D printing.

This nondescript lab is, to a great extent, helping to shape the future of additive manufacturing. “We ask companies what they are working on and what materials they will need five years from now,” says Sylvia Monsheimer, who is responsible for the New 3D Printing Technologies Market Segment at Evonik. “By providing the right materials, we enable new printing technologies to be launched on the market.”

Monsheimer travels a lot in her capacity as an ambassador for 3D printing. She has an outstanding network that encompasses technicians and engineers as well as the board members of well-known companies. She wants to make people more aware of how additive manufacturing might completely transform business models. For example, what would happen if a company could easily and quickly try out new manufacturing ideas on its own? If it no longer had to take the limits of a mold into account when designing components? Or if it could rapidly produce small batches that would be too expensive to make by other means? Monsheimer tells us about a visit she made to a textile factory that would like to switch its machines to new fabrics and patterns more quickly. “That’s possible if you use printed parts,” she says.

Although Monsheimer has been working on 3D printing for more than 20 years, she has never seen as much creativity and enthusiasm as in the past three years, she says. “For a long time, a few dominant companies hogged the market. Many of the basic patents expired between 2010 and 2017. Since then, many enhanced versions of these technologies have been introduced on the market. It’s stimulating the entire sector.” Evonik cooperates with many of these innovators. The Group’s latest investments and partnerships in Israel, China, the USA, and Austria all serve to make additive manufacturing ready for mass production.

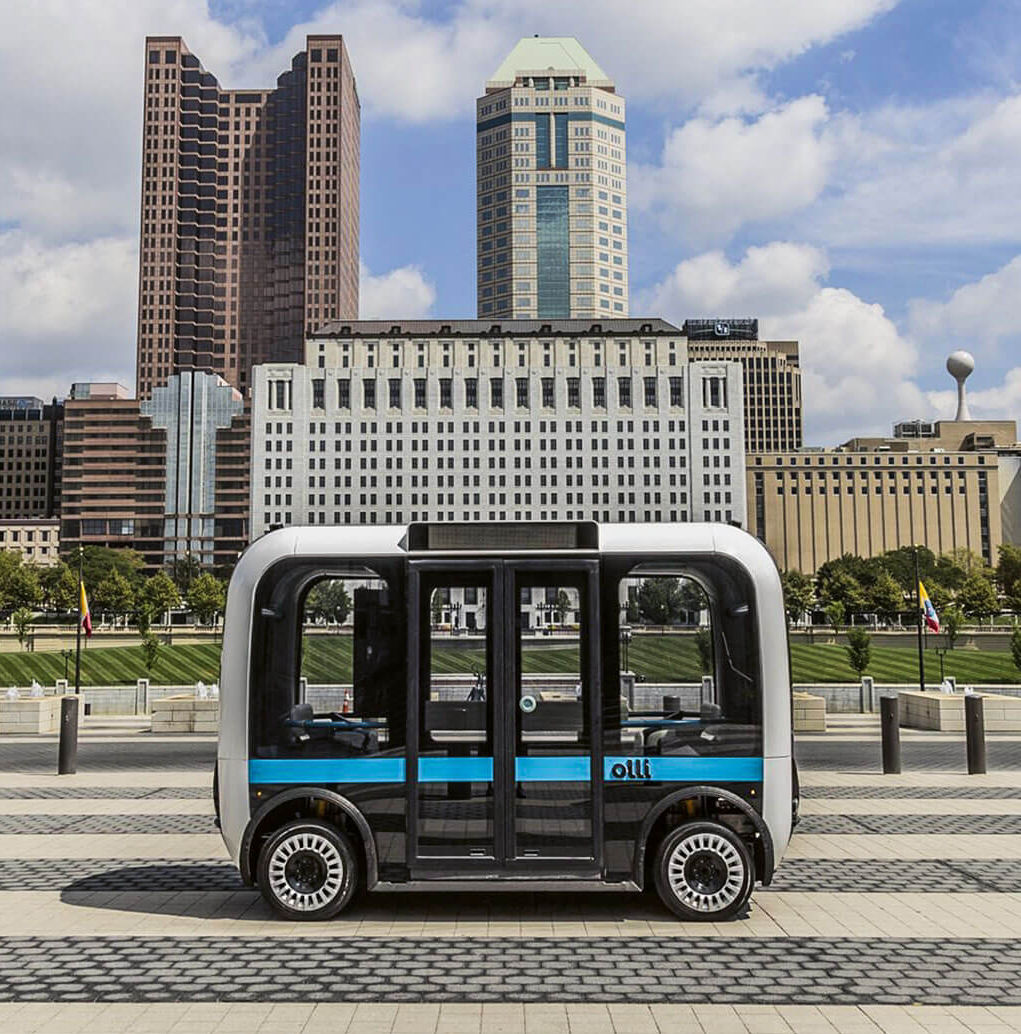

3D printing is steadily spreading throughout industry. One example is the automotive sector, where startups such as the US company Local Motors have made a name for themselves. The startup’s autonomous electric shuttlebus “Olli” consists of 80 percent printed parts. These parts are produced by printers the size of garages. However, they basically work like the printers you can get for a couple of hundred euros at electronics stores. The printer heats a plastic filament from a roll and deposits it layer by layer. This technique is referred to as Fused Deposition Modeling (FDM). It’s a robust method that doesn’t produce any dust during the printing process. Moreover, professional devices produce such a precise result that they can print medical implants or copies of organs that surgeons can use to plan complicated operations.

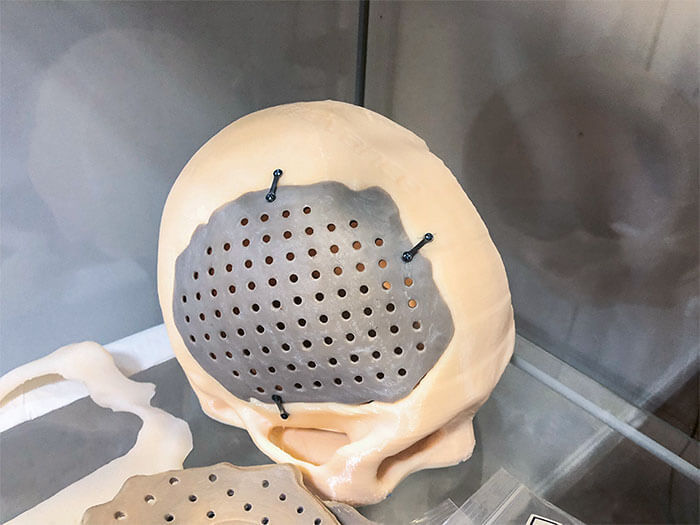

Evonik’s Venture Capital unit recently invested in one of the technology leaders in this field. The company in question is the Chinese startup Meditool, which is working on the PEEK material from Evonik. This material is approved for medical use and Meditool uses it to create a variety of products ranging from cranial implants to artificial intervertebral discs (see the overview on page 14). Such partnerships provide the material developers at Evonik with insights into the idea pipelines of sector pioneers. In its discussions with these companies about new manufacturing techniques, Evonik finds out what properties future printing materials will need.

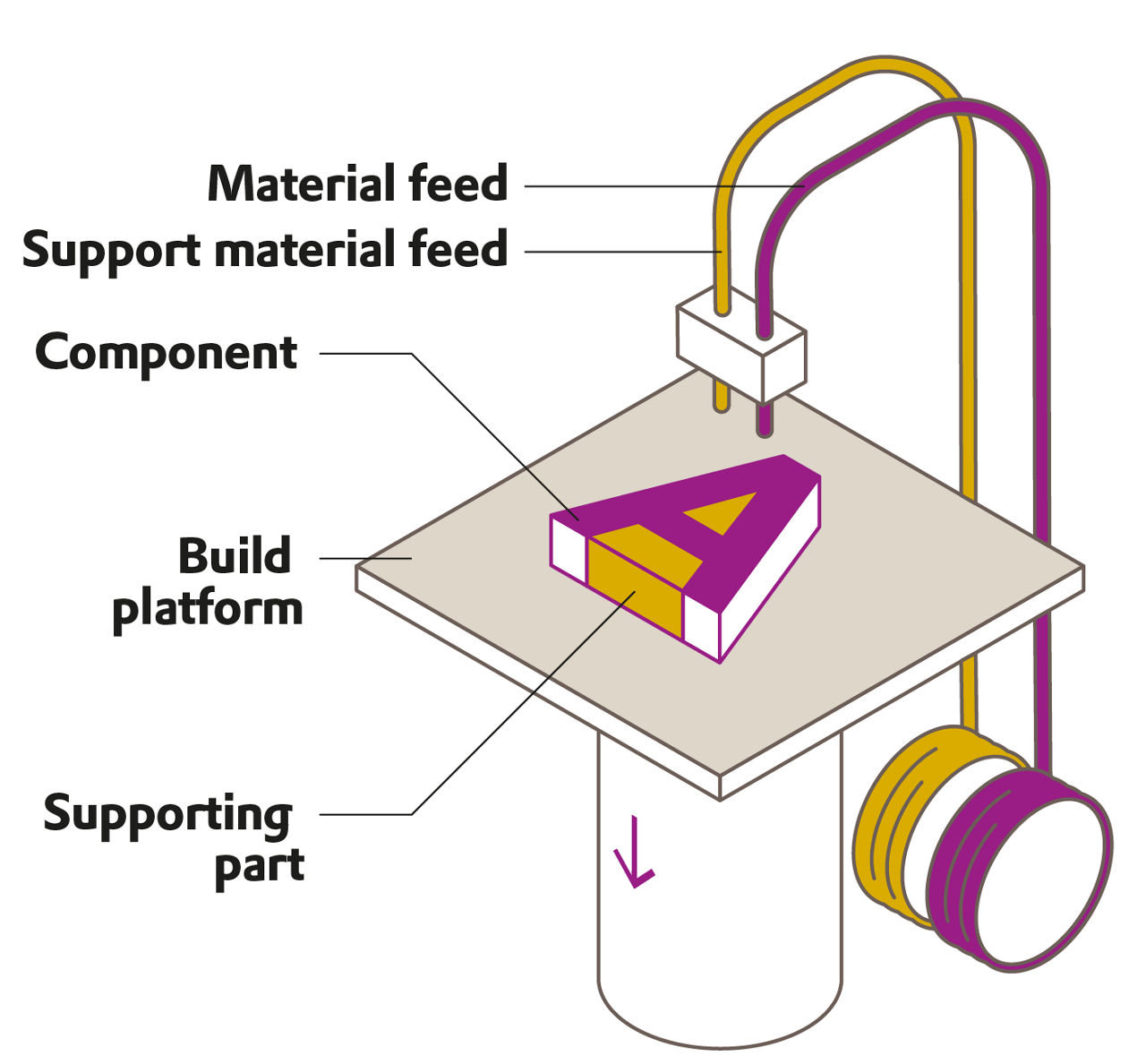

3D printers are now an established presence in the factory halls of automakers. Among them are FDM plotters from the Dutch startup Ultimaker. Its first DIY device caused a big stir in 2011 and helped fuel the hype around 3D printing. Today the company primarily targets professional users; VW, for example, uses Ultimaker printers to develop and produce tools and assembly aids at its factory in Portugal. As a result, the development costs have decreased by 91 percent, while the time savings even amount to 95 percent.

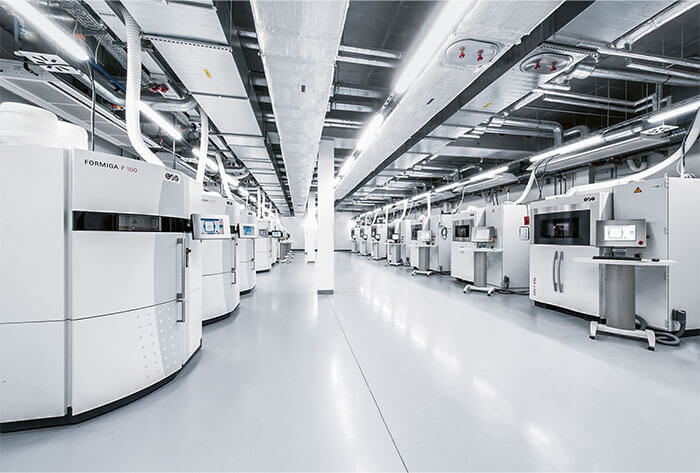

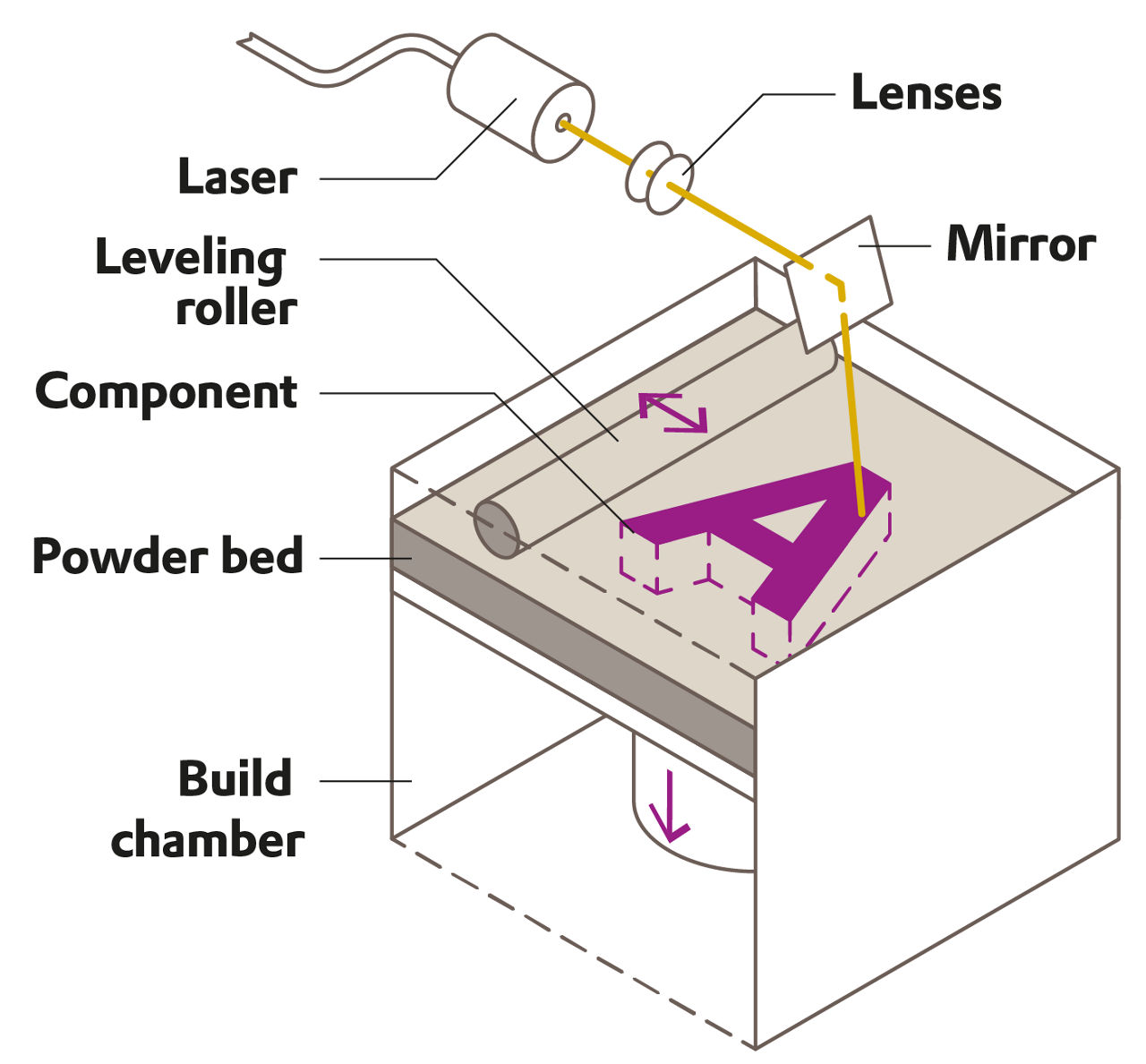

However, FDM machines can’t produce components in large batches. The process is too slow even in high-performance printers, which create the parts by moving back and forth in a raster. “Additive manufacturing using powder is the only process suitable for producing large piece numbers in the foreseeable future,” says Thomas Grosse-Puppendahl, who is responsible for Evonik’s worldwide business involving 3D printing. These printers lay down polymer powders layer by layer and heat the material at the relevant points in order to fuse it together. This is mostly done using a laser, but new techniques promise to speed up the process. These printers generally use polymer powders from Evonik.

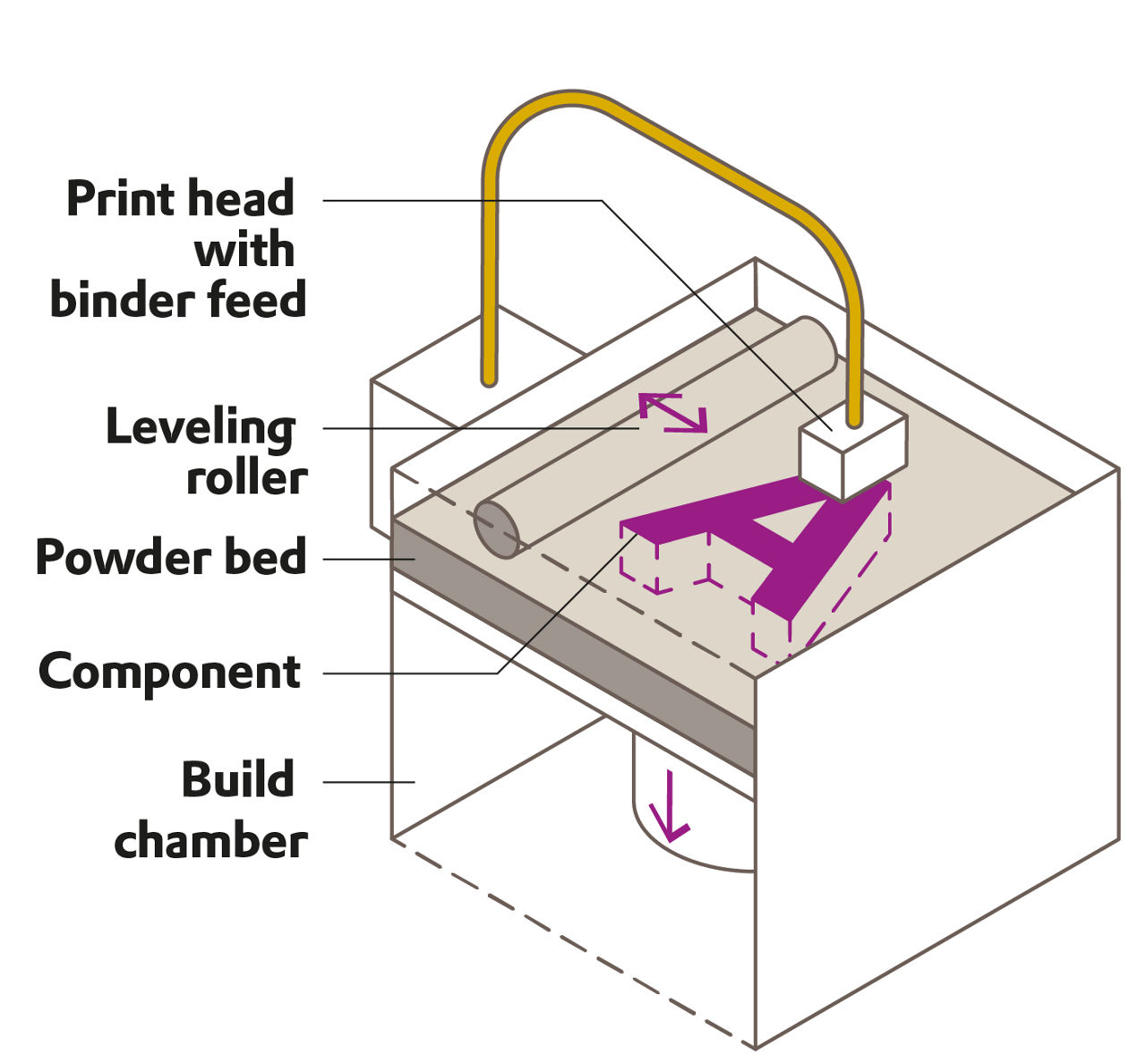

Examples include the gray machines from HP, which can also be found in the Marl technical center, where they carry out test runs next to the specimen shelf. The printer’s manufacturer, HP, which is well known in offices and homes, has transferred its expertise with inkjet printers to additive manufacturing. The component’s cross-section is printed onto a layer of polymer powder in black ink, and the heat lamps are then switched on. The black markings heat up faster than the other areas, so the material fuses together there; then the next layer of powder is laid down. The cycle of inkjet printing followed by heating is repeated again and again until a black and gray component is removed from the powder bed and blown clean under an extractor hood.

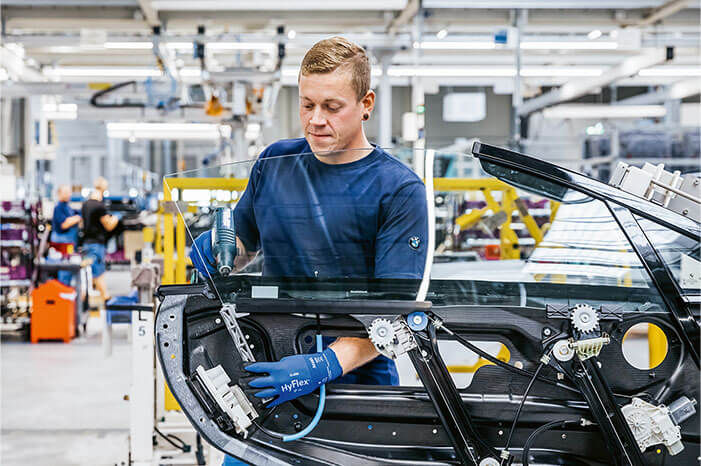

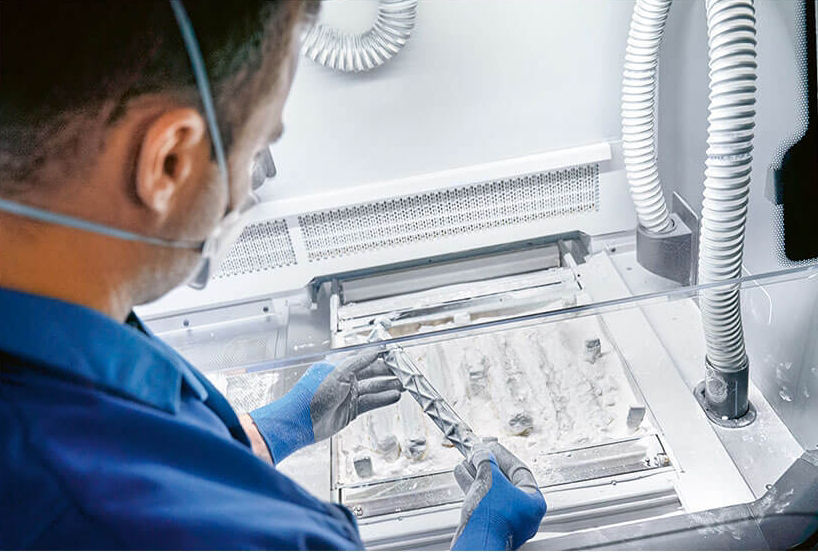

This technology is called Multi Jet Fusion (MJF). BMW, for example, is already using it in production. In 2010 BMW began to use plastic and metal-based processes, initially for small batches. According to the automaker, it has since then used additive manufacturing to produce more than one million components, including waveguide brackets for the Rolls-Royce Dawn and window guiderails for the i8 Roadster. The Group also uses 3D printing to produce customized decorative inserts for the dashboard and the body of the Mini.

3D printing is still being primarily used to create trim or small parts that are invisible to car buyers. This is not surprising, since every new application first has to prove its worth in less critical areas. 3D printing primarily has to compete against the well-established injection molding technique, which has been enhanced over a period of many years. The advantages of 3D printing are that it enables freedom in design and opens up completely new opportunities for researchers and engineers to develop lightweight components and create totally new functions. “We are completely redesigning the parts for 3D printing so that they will have the properties we want,” says Monsheimer.

This process is simplified by a new partner of Evonik: the Israeli startup Castor. The company’s software conducts a comprehensive technical and economic analysis in order to determine when additive manufacturing is economical compared to conventional production methods.

A component that is reinvented for 3D printing often has little in common with the original part. Whereas an injection-molded part has to be heavy and massive so that it can withstand great stresses, an equivalent 3D-printed part can have a seemingly filigree design consisting of arches, struts, and honeycomb structures. It can withstand stresses just as well as the injection-molded part but weighs only a fraction as much. As a result, even as simple a part as the window guiderails of a roadster give us a preview of how entire automobiles will be built in the future.

These weight reductions make additive manufacturing a very interesting technique for aircraft construction. Every gram counts in this sector, and there is a rising demand for more fuel-efficient machines that are less damaging to the climate. The innovations of additive manufacturing are initially inconspicuous here as well. The US Air Force, for example, uses 3D printing to produce replacement parts for its veteran jet planes. The fact that 3D printing made a toilet seat much lighter but still robust thanks to the use of a honeycomb structure was considered newsworthy within the sector. The components that are being developed by the aircraft manufacturers Boeing and Airbus are more critical to an airplane’s operation. Metal powders are now being used to make the first wing and engine components, and the 3D printing of plastic parts is becoming increasingly common for cabin furnishings. In this case, it would often also be too expensive to create injection-molded parts—for example, when an airline modernizes its fleet. Such tasks require the expertise of specialists like the Belgian company Materialise, which, among other things, uses high-performance polymers to print components for Airbus.

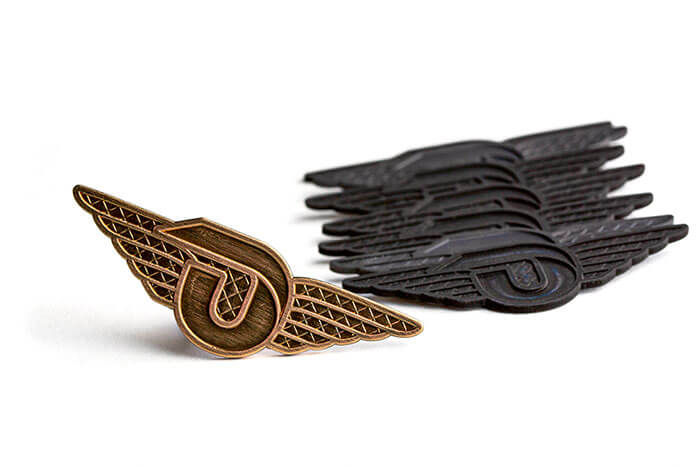

According to Monsheimer, greater production volumes will, more than anything else, require additive manufacturing to become faster. “The process will become especially interesting for the automotive industry when we begin to produce tens of thousands or hundreds of thousands of units,” she says. The new partnership between Evonik and the US startup Evolve might be the key to unlocking this potential. The startup’s technique, which is known as STEP, basically works like a laser printer and thus achieves much higher speeds. “Conventional powder-based processes always us a laser or print head that traces the print shape on the powder bed,” explains Innovation Manager Wolfgang Diekmann, who heads the 3D printing lab in Marl. “STEP, on the other hand, uses digital printing technology. The material is very quickly picked up by a drum, which then deposits it. Because the powder is very fine, the resulting component has a higher resolution than would otherwise be the case.”

Evonik is contributing its decades-long experience with materials to the partnership, creating a win-win situation in the process, says Monsheimer. “We can develop new materials when we have a machine that we can test them with. Our partners, in turn, can develop a new machine when they have access to good materials,” she adds. As a result, the technical center in Marl is a veritable exhibition of the international 3D printing sector. In addition to machines from HP and 3D Systems, the center has devices from the German market leaders EOS and Voxeljet, the Swiss company Sintratec, and the Chinese manufacturer TPM. The devices are extensively used, as is demonstrated by an opened printer that Monsheimer is inspecting. “We want to know not only which materials we can develop for existing technologies but also how the existing technologies might be made better,” she says.

This approach has enabled Evonik to more or less incidentally develop several 3D printing technologies of its own, which it licenses to other companies. “We have experimented with variants of High Speed Sintering (HSS),” says Monsheimer. In this technique, the powder is not directly melted by a laser, but instead an absorber is applied at the desired points. A heat source is then passed across the layer, similar to the approach used in Multi Jet Fusion.

This approach has enabled Evonik to more or less incidentally develop several 3D printing technologies of its own, which it licenses to other companies. “We have experimented with variants of High Speed Sintering (HSS),” says Monsheimer. In this technique, the powder is not directly melted by a laser, but instead an absorber is applied at the desired points. A heat source is then passed across the layer, similar to the approach used in Multi Jet Fusion.

Obtaining in-depth knowledge of such processes helps Evonik develop new powders for a variety of printing techniques, says Diekmann. “Depending on the requirements, it takes us between six months and two to three years—sometimes even more—to create a new material.” Polyamide 12 (PA 12), which is used in innumerable applications, often serves as the basis to which the developers at Evonik give new properties with the help of additives. “Flame retardants, for example, make it suitable for use in the electronics industry or in components for aerospace applications,” says Diekmann. “And when a material has to be especially robust, we add glass particles, for example.”

The lab in Marl also creates completely new combinations of materials. Last year, for example, Evonik presented the high-performance powder PA 613, which combines the advantages of long-chain and short-chain polyamides. This powder is thermally stable, strong, and nonetheless flexible. Moreover, it absorbs little water. In 2018 the thermoplastic elastomer PEBA (polyether block amide), which was introduced in the 1980s, served as the basis for a powder that enables objects to be printed that have an almost rubber-like consistency.

“No other company in the world has as many different powder manufacturing methods as Evonik,” says Grosse-Puppendahl. What’s more, many of the applications that are still not possible should be achievable with a new production technology that the company purchased in 2019. This process was developed by the US startup Structured Polymers and enables a lot more materials to be pulverized than Evonik could achieve before. The best example of this is a new copolyester powder, which was also the first material to be produced with this innovative technology.

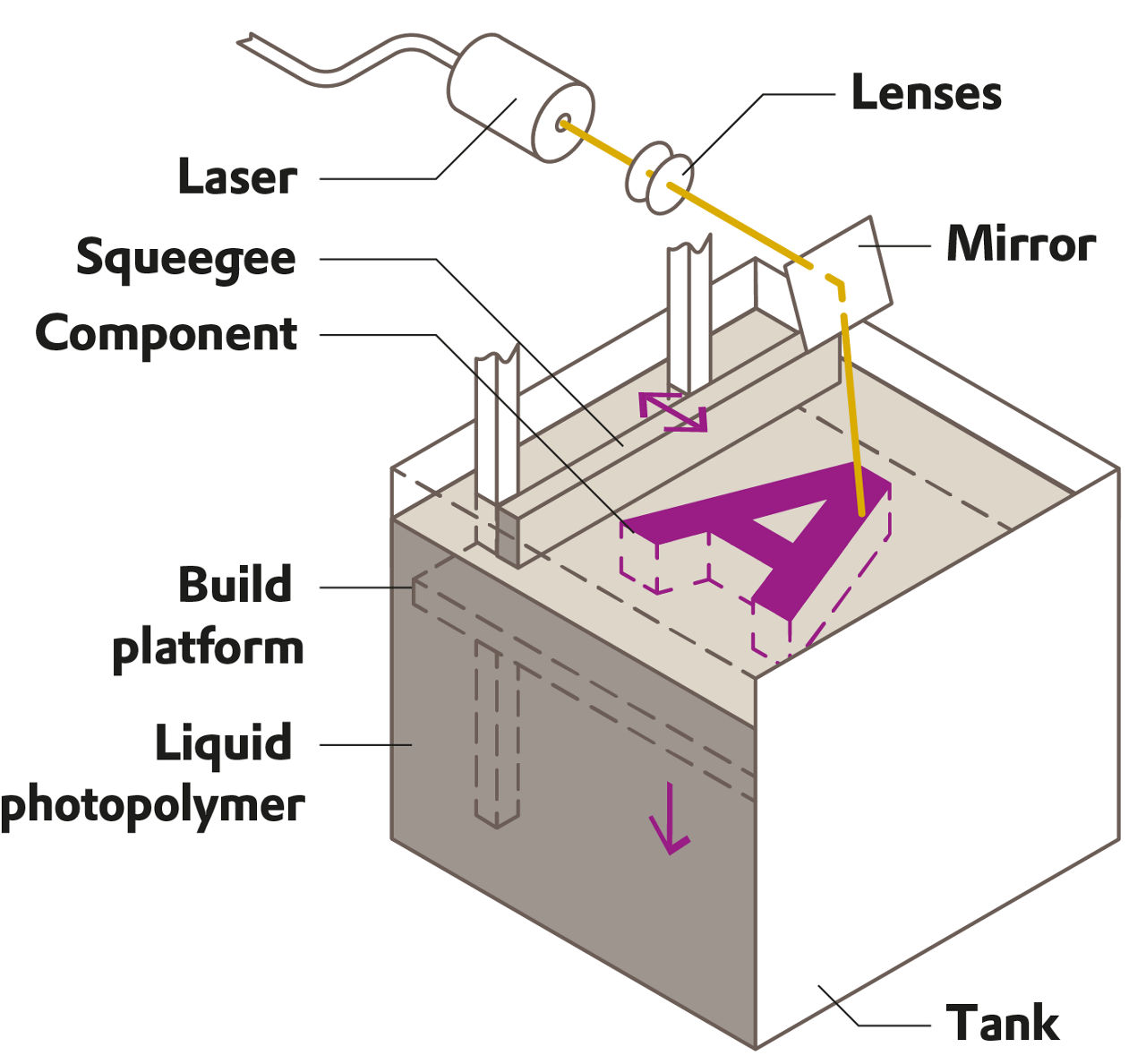

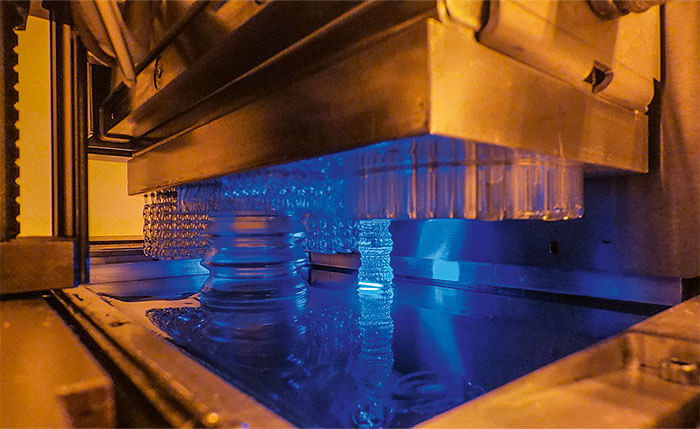

The experts are also investigating other starting materials besides powders. Startups such as the Austrian company Cubicure and Creavis, the strategic innovation unit at Evonik, are working not only on powder-based processes but also on printing techniques in which the workpiece is drawn from a liquid photopolymer. Light sources such as lasers harden this light-sensitive material at the desired points. The precision is unparalleled, says Cubicure CEO Robert Gmeiner. “The resolution is only defined via the optical mask, which can be set with extreme precision,” he adds. Moreover, only ten percent of the starting material cannot be used for further printing after production. “Powder-based methods are a long way from achieving that.”

Other SLA-printing manufacturers are also working on the development of new materials in cooperation with the specialists at Evonik. Last year Evonik opened a new research hub in Singapore, where formulation specialists are developing next-generation photopolymers. “There’s still a lot of uncharted territory in the field of polymers,” says Monsheimer. But that is precisely why this work is so intriguing for Monsheimer and Diekmann. “Ever since I started to work here, I always wanted to get away from the principle of ‘One company, one process.’ I’m delighted that this is now happening,” she says.

New technologies require new partnership models. Evonik is cooperating with other companies worldwide in order to investigate promising future applications for 3D printing. Here are four examples
